Product SKU: APC-STARK6-M
Replacement Motor for Super Duty STARK6 Units (Motor Only) | Italian Made Swing Gate Opener
Packing a punch the APC-STARK6 system can deliver 2400N of thrust to operate gates up to 750kg or 6m in length. With two built-in adjustable stops for opening and closing positions, the system is versatile in its stopping arrangement.

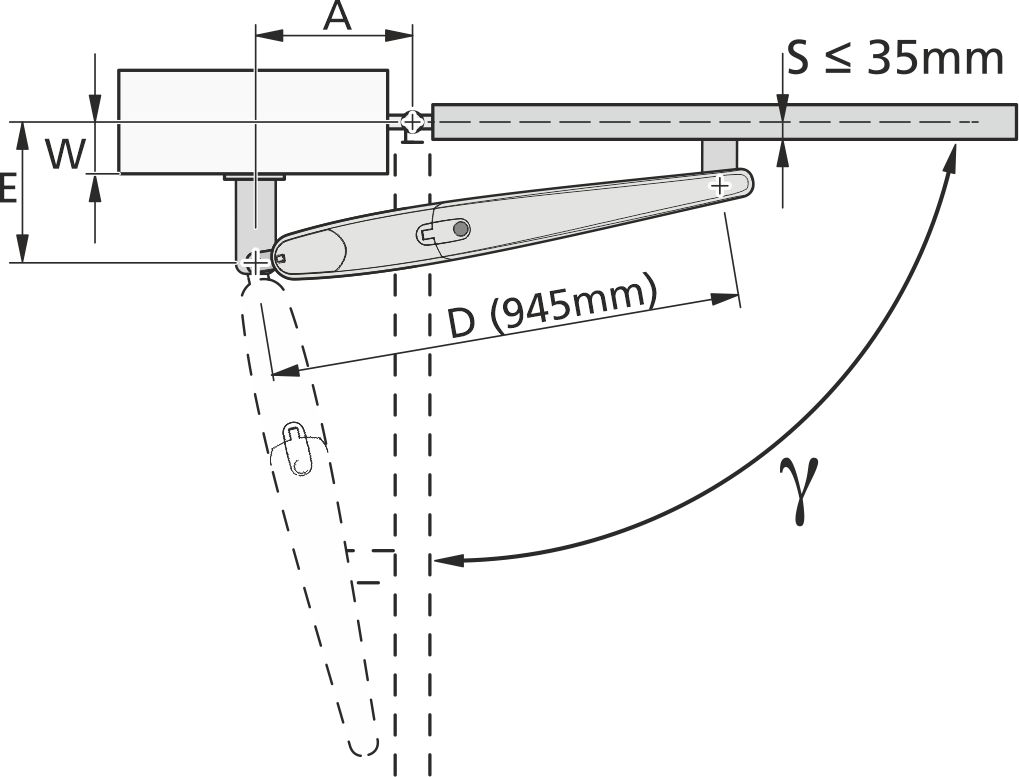

STARK6 is supplied with fastening plates and brackets for the gate and the wall/post. The brackets must be welded to the fastening plates. The wall/post brackets may be cut to the desired length, adjusting distances A and E. This provides flexibility for the opening angle of the gate.
NOTE - The bracket supplied with the gate opener kit is 180 mm long
| Thrust | 2400N |
|
Motor Voltage
|
24v DC
|
|
Manual override
|
Via override key supplied
|
|
Working temperature
|
-20° - +55°
|
|
Duty Cycle
|
80%
|
|
Maximum stroke
|
540 mm
|
|
Gates size
|
6m max
|
|
Gate weight
|
750kg max
|
