With its Soft Start/Soft Stop feature the APC Typhoon 800 brings the gate up to operating speed and down to a stop gently significantly increasing the motors operating life whilst decreasing the jolting movement incurred when the feature is not available.This feature can also simply be turned off if not required.

The 450W Internal motor allows for an 800kg capacity making it the ideal candidate for the majority of gate installations.

Ready to go the on board receiver will accept the entire range of current APC High Security wireless control systems and accessories such as wireless keypads, push buttons and an extensive range of  remotes. Perfect for a simpler of no wiring needed installation.

Ultra compact, sleek design and with some clever re-arrangement the APC Typhoon 800 is one of the smallest physical footprint systems on the market with zero compromise in the motor or gearbox size. The bottom cast alloy section is powder coated in a ultra durable hammer tone grey finish whilst the top cover sports a lighter gloss grey making it perfectly neutral and suited for any garden or driveway

With separate open and close inputs as well as an shared open/close input the APC Typhoon 800 will support just about any wired accessory and  can be connected for a specific direction or to operate both. Perfect for Keypads, Push buttons, Induction Loops or Smart Devices such as Wi-Fi switches or GSM controllers.

Pre wired with the AC power cable and fitted with an on board low voltage transformer means the accessories connections are low voltage (18V DC) and safe to connect.

• 7-32V AC & DC Compatible
• Operate Full gate and Pedestrian Function through the APP
• Operatable ANYWHERE in the world using Apple devices (iOS) and Android Devices using Tuya APP
• One Master User (Administrator) and unlimited regular users
• Allows for manual operation and/or scheduled operation of both system features
• Ultra Low power consumption of 20mA
• Requires good WiFi connection at its installed location

• Up to 15 Metres Infared beam operating distance


• Only powers on when the command is given to close the gates


• Alignment led to assist in the installation process


• Weather sealed with the supplied cover seals


• Easy screw down wiring termination




• 165mm Long Galvanized steel construction for long life outdoor use


• 60mm Nylon rollers with completly adjustable positions


• 75mm internal clearance between rollers at full span, allowing for 25mm ajustment for the gate a gate thickness not exceeding 50mm is ideal (see 200mm long bracket to allow 85mm gate thickness)


• Pre-punched fixing holes ideal for adjustments prior to final fixing

• R10 profile to suit the entire range of APC Galvanized profile tracks


• Dual bearing system for the capacity of 250KG per wheel (500kg per pair)


• Fits straight to the bottom, no cut out required


• Raises the gate by 92mm when installed with the floor track


• Easy installation with pre-punched fixings, screws to the tubing from each side




• R10 profile to suit the entire range of APC recess and flat mount wheels


• Rounded profile provides the least resistance for sliding gate movement over the alternative "V groove"


• High strength 3mm steel, Galvanized for complete long life outdoor use


• Pre-punched fixing holes ready for anchor nails


• Easy to install, bolts down to concrete! No need to set in during concreting

• Galvanized steel construction for long life outdoor use

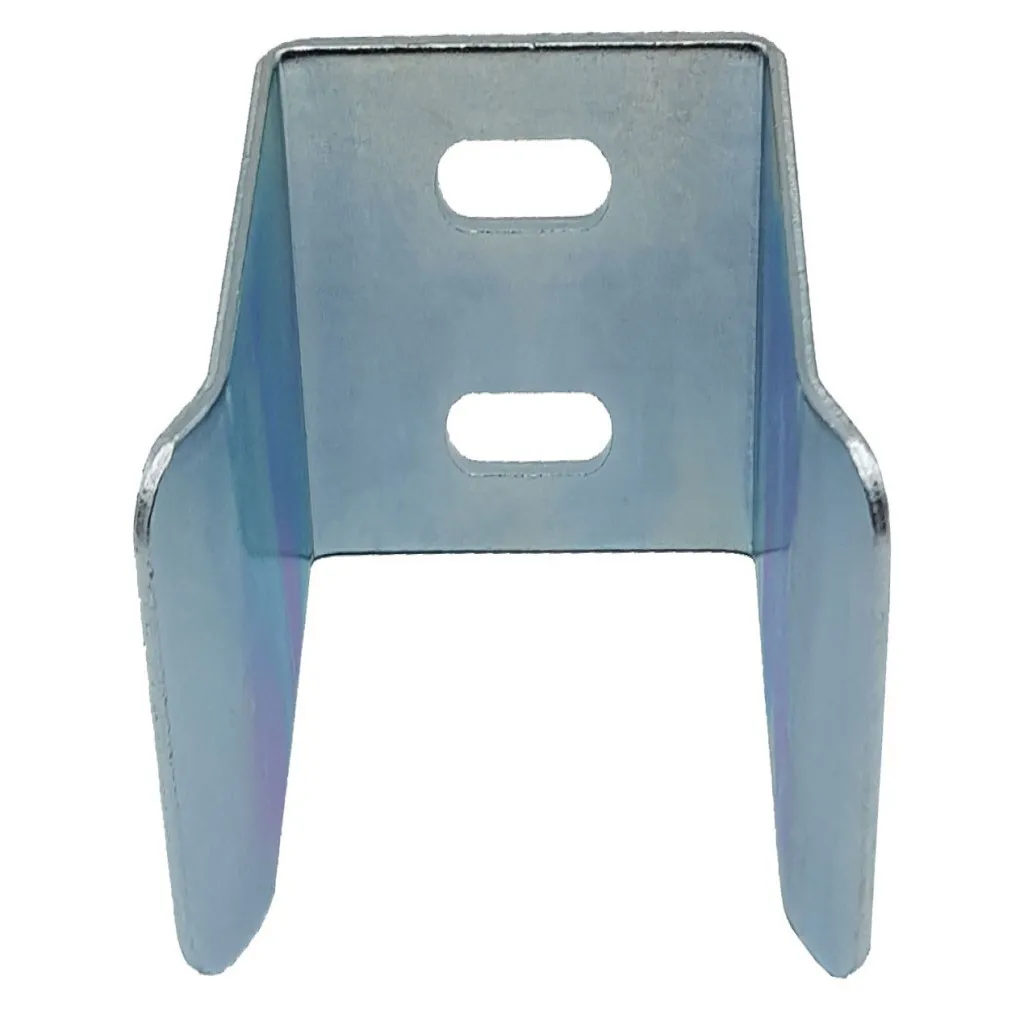

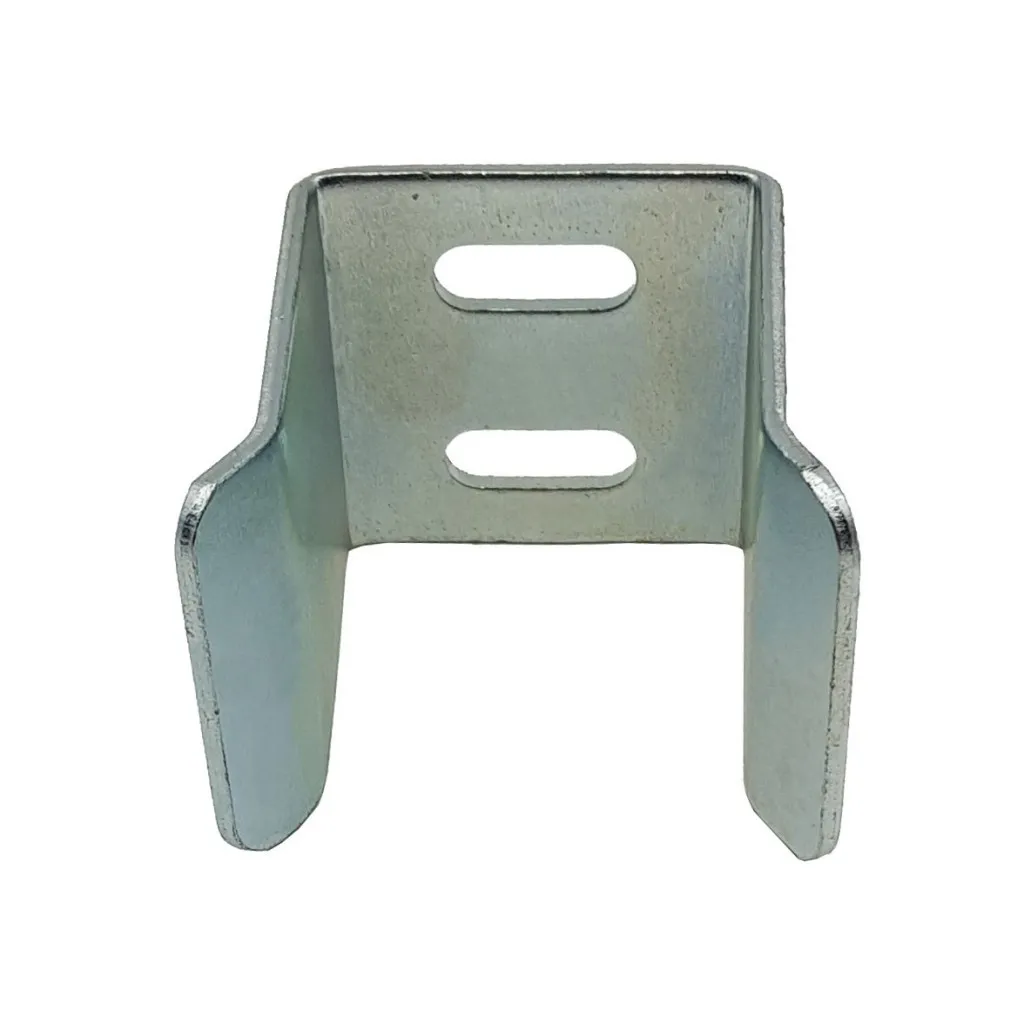

• Flared entry to guide gate into the reciever in case of wind loads pushing the gate


• 55mm internal clearance ideal for standard steel or aluminum gates without cladding


• Pre-punched fixing holes ideal for adjustments prior to final fixing

• Galvanized steel construction for long life outdoor use


• 115mm Height


• 40mm Rubber bumper


• Solid 100x80mm base


• Pre-punched 10mm fixing holes
