Photoelectric Beam Gate Sensor with 10m Cable | PE Sensor and 10m Cable Combo

Photoelectric Beam Gate Sensor

Infrared beam security sensor.
The PE sensor is a safety beam sensor, used on sliding gates, swing gates, and garages opening systems to stop the gate(s) from closing on a car, person, or objects,

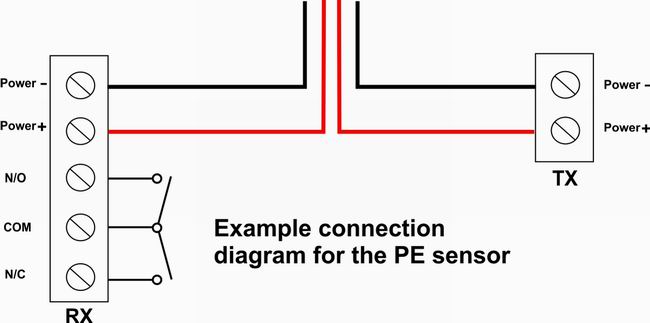

The APC-PE2000 allows for N/O & N/C contacts.

Specifications
Detection technology: Infrared
Range: 15m
Frequency: 1.92Khz
Power: 12-24V AC/DC
Wave Length: 940mm
Input: RX 15mA, TX 30mA
Operating temperature: -20 to 70 degrees
Relay output: 1Amp max 30V
Dimension: 49.2 x 76 21mm
Please note: The range give above may vary according to the site environment conditions and according to the weather
