Product SKU: KP-AC-1

Access Control Keypad Bundle Front Door OR Gate Electric Striker Kit

Add Image

cart 0
×
Your Cart is Empty

Looks like you have not added anything to the cart. Go ahead & explore top categories.

Product SKU: KP-AC-1

Access Control Keypad Bundle Front Door OR Gate Electric Striker Kit

This Keypad and Electric Striker Bundle Kit is suitable for automating pedestrian access gates or front doors.

  •  Out Of Stock

Kit Price:

$426.00 Free Shipping

  • Or in 4 payment of $106.50 with afterpay info

  • Kit Includes

    01 APC Slimline Vandal Resistant Keypad with EM card Reader(QTY:1)
    02 EM Swipe Tag(QTY:6)
    03 5m 4 Core Non Shielded Cable(QTY:1)
    04 Flush Mount Universal Stainless Steel Face Electric Striker(QTY:1)
    05 5m 2 Core Non Shielded Cable(QTY:2)
    06 APC Wired Single Push Button Switch with Key Issolation(QTY:1)

Customise your kit

Upgrades are available for following items

Product Information

APC-KP1C Wired keypad with built in card reader



The APC-KP1C keypad is a waterproof low voltage keypad which is wired back to the control board using the supplied cable roll. It is of alloy construction and extremly robust. It can be seen day or night thanks to its backlit keys. Two EM swipe cards are also supplied suitable for any temporary or permanent user that need to gain access into the property without a pin code.

Key Features:

  • Built in EM card reader.
  • Robust cast alloy construction
  • Resin filled for ultimate weatherproofing
  • Blue Backlit keys
  • Anti-tamper feature
  • IP66 Waterproof rated and suited for outdoor and indoor environments.
  • Up to 1000 users for pin code and EM card.



Wired Push Button with Isolation Key





The wired push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The push button is wired to the control board using the supplied cable roll. If required the button can be upgraded to a wired keypad for higher access security using pin number .





ES-138 Electric Striker


  • Stainless steel design
  • 12V DC 250mA Fail Secure
  • Recess Mounted
  • 800Kg Holding Strength
  • Dimensions: 124Lx32Wx33H(mm)

Wiring Diagram

Keypad Access Control Bundle

12V DC Power Supply

Lock and Access Control Power Supply 12V 3A DC

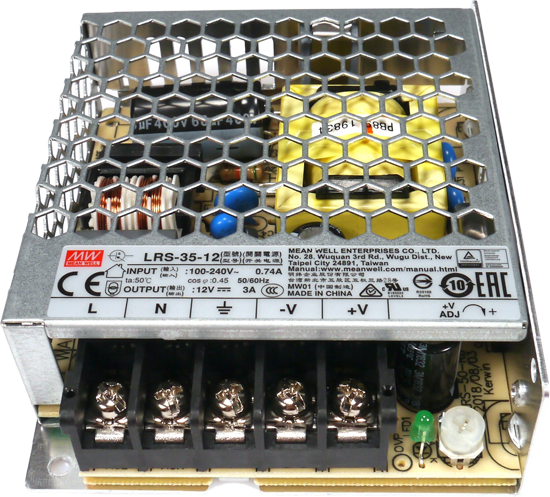

LRS-35-12 Single Output Switching Power Supply 12V/3A Output

A 35W single-output enclosed type power supply with a 30mm low-profile design.

The input range is 85-264VAC, and the output is 12VDC / 3A. Suitable for all 12V devices.

Brand: MEAN WELL
Weight: 350 Gr



SPECIFICATIONS
Input Type Single Phase
Input Voltage 85 ~ 264VAC
Input Current 0.42A / 230VAC
Output Voltage 12V
Output Current 3A
Rated Output Power 36W
Output Type Single
Output Voltage Adjustment 10.2 ~ 13.8V
Prescribed Electrical Item No
SELV Yes
Efficiency 86.00%
Operating Temperature Range '-30 ~ +70ºC (Refer to "Derating Curve" in Data Sheet)
Warranty 1 Year
Approvals CE, CB, RCM
IP Rating / Environmental Protection Less than IP65
Dimensions 99*82*30mm (L*W*H)
Recommended for New Designs Yes
